中心波長

975nm

977nm

閾值電流

I_th-BOL

35 mA

正向電壓

V_f

I_f = I_op

2.6 V

光纖輸出功率

P_f

20 mW

480mW

工作電流

I_op

960mA

泵浦功率@Band = λm ±1.5 nm

P_pump

P_pump Band = λm ±1.5 nm, at P_op

90%

光譜寬度

?λ_RMS

50 mW < P_f < P_op

2.0 nm

波長溫度調諧Tuning   VS Temp

?λ/T

I = I_op

0.01 nm/°C

光功率穩定性

?P_{f_t}

Over P_f range, DC to 50 kHz, 20 mW to P_op

2.0%

跟蹤比1

TR

0.1P_op < Pf < P_op

0.75

1.25

跟蹤誤差2

TE

At  P_op

?25%

25%

PD監控響應度

I_BF

At P_op, V_PD = ?5 V

1 μA/mW

5 μA/mW

熱敏電阻

R_th

T_set = 25°C

9.5 kΩ

10.5 kΩ

T_set = 45°C

4.1 kΩ

4.6 kΩ

熱敏電阻常數

B

3600 K

4200 K

TEC電流I_max (A)

2.03

TEC電壓 V_max (V)

2.60

TEC功耗P_TEC (W)

5.55

總模塊功耗 P_max (W)

7.48

截止波長

920 nm

Max. 衰減 at 980 nm

2.1 dB/km

包層外徑

125 ±1 μm

涂層外徑

245 ±10 μm

纖芯包層同心度

≤0.5 μm

模場直徑

5.9 ±0.3 μm

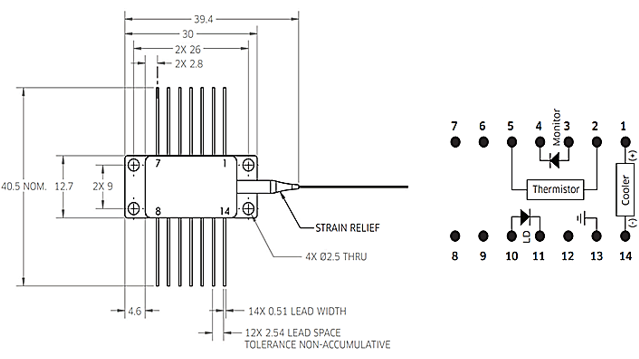

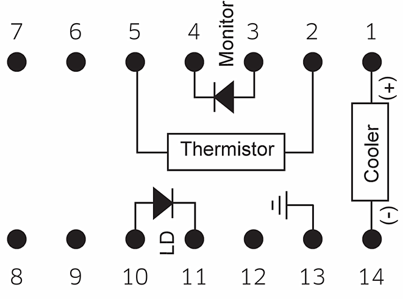

1

Cooler (+)

2

Thermistor

3

Monitor PD anode

4

Monitor PD cathode

5

Thermistor

6

N/C

7

N/C

8

N/C

9

N/C

10

Laser anode

11

Laser cathode

12

N/C

13

Case ground

14

Cooler (?)

S30-xxxx-300

300

630

330

640

S30-xxxx-320

320

655

360

700

S30-xxxx-340

340

680

380

760

S30-xxxx-360

360

720

400

805

S30-xxxx-380

380

760

420

855

S30-xxxx-400

400

805

440

890

S30-xxxx-420

420

860

460

940

S30-xxxx-440

440

890

480

985

S30-xxxx-460

460

920

505

1050

S30-xxxx-480

480

960

530

1100

S30-xxxx-500

500

1000

550

1150

S30-xxxx-520

520

1050

570

1200

S30-xxxx-540

540

1100

595

1250

S30-xxxx-560

560

1150

615

1300

S30-xxxx-580

580

1200

640

1350

S30-xxxx-600

600

1250

660

1400

S30-xxxx-620

620

1150

680

1300

S30-xxxx-640

640

1200

710

1350

S30-xxxx-660

660

1250

730

1400

S30-xxxx-680

680

1250

750

1400

S30-xxxx-700

700

1300

770

1450

S30-xxxx-720

720

1300

790

1450

S30-7402-yyy

973.0 nm

975.0 nm

S30-7602-yyy

975.0 nm

977.0 nm

S30-8000-yyy

973.0 nm

981.5 nm
