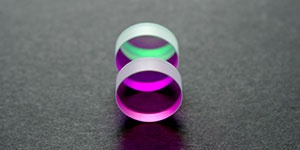

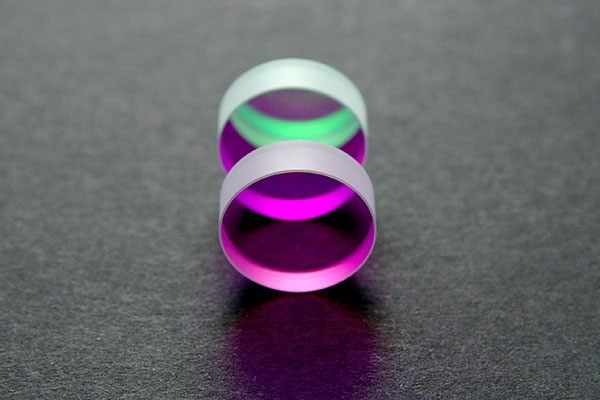

LAYERTEC 啁啾鏡對 (超快激光反射鏡)

LAYERTEC 啁啾鏡對 (超快激光反射鏡)
(Chirped Mirror Pair)啁啾鏡用于補償超短激光脈沖與色散相關的傳播時間差。如果 GDD 曲線中的振蕩很強，則需要啁啾鏡對（由兩個啁啾鏡組成）。對于高帶寬的鏡子尤其如此。啁啾鏡的 GDD 曲線并不代表直線曲線，而是顯示振蕩。其中，這些強度有多強取決于光譜帶寬。對于小于同類布拉格鏡帶寬的 GDD 帶寬，振蕩相當小。另一方面，具有高帶寬的鏡子表現出強烈的 GDD 振蕩。


聯系客服
 華北西南東北 Moli
13061644116 同微信 可掃碼  info@microphotons.com
 西北華中華東華南 Daisy
18602170419 同微信 可掃碼  info@microphotons.com
產品型號 1
貨號 操作 名稱
A80150734  LAYERTEC 啁啾鏡對 平面 340?-?440nm (用于飛秒激光)   [PDF] 熔融石英 平面鏡； 直徑?：25.0(-0.1)mm； 厚度：6.35(±0.10)mm； S1：無涂層；S2(^)： 倒角0.3 HRp(5°；340-440nm)；高反射率：>99%     價格 : ￥0 庫存/貨期:請咨詢客服
總覽

(Chirped Mirror Pair)啁啾鏡用于補償超短激光脈沖與色散相關的傳播時間差。如果 GDD 曲線中的振蕩很強，則需要啁啾鏡對（由兩個啁啾鏡組成）。對于高帶寬的鏡子尤其如此。

啁啾鏡的 GDD 曲線并不代表直線曲線，而是顯示振蕩。其中，這些強度有多強取決于光譜帶寬。對于小于同類布拉格鏡帶寬的 GDD 帶寬，振蕩相當小。另一方面，具有高帶寬的鏡子表現出強烈的 GDD 振蕩。


通用參數

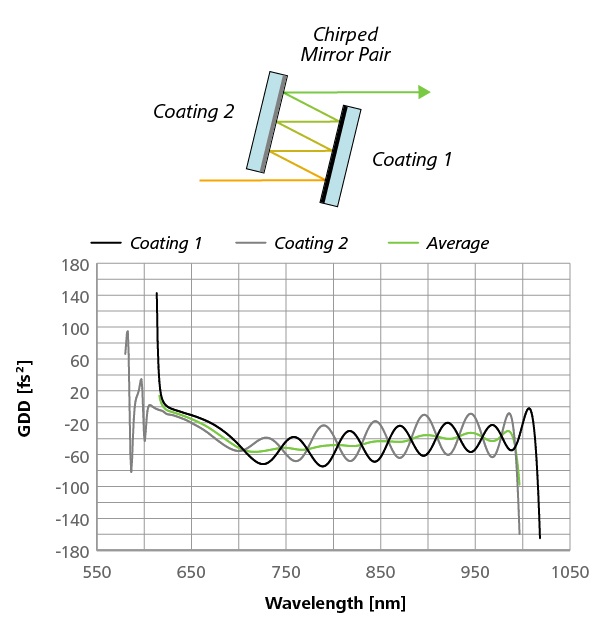

  負色散鏡對的 GDD 光譜



可以通過使用相應的鏡對來實現校正。它們由兩個具有相反 GDD 曲線的不同涂層介電鏡組成，激光束可以根據需要在兩個鏡之間來回反射（見圖）。這些鏡子針對小入射角進行了優化，從而可以實現大量反射。


啁啾鏡對按型號82條


型號規格正/背面形狀涂層
Chirped Mirror Pair 148921
Corning 7980 2F or equal		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRp(5°,340-440nm)>99%

GDD(5°,340-440nm)=-25fs2


Chirped Mirror Pair 148920
Corning 7980		Rectangular40?mm ?x?10?mm

with marked corner

plane+planet = 12.5?mm		Front?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRp(5°,340-440nm)>99%

GDDp(5°,340-440nm)=-25fs2


Chirped Mirror Pair 102504
Corning 7980 2F or equal		Round? = 12.7?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,360-480nm)>99.5%, GDD=-15fs2


Chirped Mirror Pair 103851
Corning 7980 2F or equal		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,360-480nm)>99.5%

GDDu(0-8°,360-480nm)=15fs2


Chirped Mirror Pair 107549
Corning 7980 2F or equal		Round? = 25?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 250?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

PR(0°,430-690nm)=99.5(±0.3%), GDD=-20fs2


Rear?Side   (S1)

AR(0°,430-690nm)


Chirped Mirror Pair 148545
Corning 7980		Rectangular40?mm ?x?10?mm

with marked corner

plane+planet = 12.5?mm		Front?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HR(0°,470-810nm)>99.7%

GDD(0°,470-810nm)=-40fs2


Chirped Mirror Pair 109812
Corning 7980 2F or equal		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,480-640nm)>99.85%, GDD=-70--40fs2


Chirped Mirror Pair 109811
Corning 7980		Rectangular40?mm ?x?10?mm

with marked corner

plane+planet = 12.5?mm		Front?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,480-640nm)>99.85%, GDD=-70--40fs2


Chirped Mirror Pair 109936
Corning 7980 2F or equal		Round? = 12.7?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,480-660nm)>99.85%, GDD=-22fs2


Chirped Mirror Pair 109937
Corning 7980 2F or equal		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,480-660nm)>99.85%, GDD=-22fs2


Chirped Mirror Pair 109935
Corning 7980		Rectangular40?mm ?x?10?mm

with marked corner

plane+planet = 12.5?mm		Front?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,480-660nm)>99.85%, GDD=-22fs2


Rear?Side   (S1)

HR(0°,440-660nm)>99.85%, GDD=-22fs2


Chirped Mirror Pair 109384
Corning 7980		Rectangular45?mm ?x?15?mmplane+planet = 12.5?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,480-660nm)>99.85%, GDD=-22fs2


Chirped Mirror Pair 134205
Corning 7980 2F or equal		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRu(7°,500-1000nm)>99.4%


Chirped Mirror Pair 111346
Corning 7980		Rectangular40?mm ?x?10?mm

with marked corner

plane+planet = 12.5?mm		Front?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRu(7°,500-1000nm)>99.4%


Chirped Mirror Pair 116433
Corning 7980		Rectangular45?mm ?x?15?mmplane+planet = 12.5?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRu(7°,500-1000nm)>99.4%


Chirped Mirror Pair 183448
Corning 7980 2F or equal		Round? = 12.7?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRu(5°,510-920nm)>99.7%

GDD(5°,520-900nm)=-40fs2


Chirped Mirror Pair 149666
Corning 7980 2F or equal		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRu(5°,510-920nm)>99.7%

GDD(5°,520-900nm)=-40fs2


Chirped Mirror Pair 148731
Corning 7980		Rectangular40?mm ?x?10?mm

with marked corner

plane+planet = 12.5?mm		Front?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRu(5°,510-920nm)>99.7%

GDD(5°,520-900nm)=-40fs2


Chirped Mirror Pair 146883
Corning 7980 2F or equal		Round? = 12.7?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,540-1040nm)>99.6%


Chirped Mirror Pair 146887
Corning 7980 2F or equal		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,540-1040nm)>99.6%


Chirped Mirror Pair 147519
Corning 7980		Round? = 50?mmplane+planet = 9.5?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,540-1040nm)>99.6%


Chirped Mirror Pair 146851
Corning 7980		Rectangular40?mm ?x?10?mm

with marked corner

plane+planet = 12.5?mm		Front?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,540-1040nm)>99.6%


Chirped Mirror Pair 146885
Corning 7980		Rectangular45?mm ?x?15?mmplane+planet = 12.5?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,540-1040nm)>99.6%


Chirped Mirror Pair 107864
Corning 7980 2F or equal		Round? = 12.7?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 200?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,570-1040nm)>99.7%, GDD=-40fs2


Chirped Mirror Pair 102155
Corning 7980 2F or equal		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,600-1000nm)>99.6%, GDD=-40fs2


Chirped Mirror Pair 104408
Corning 7980 2F or equal		Round? = 25?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 100?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,600-1000nm)>99.6%, GDD=-40fs2


Chirped Mirror Pair 103804
Corning 7980 2F or equal		Round? = 25?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 150?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,600-1000nm)>99.6%, GDD=-40fs2


Chirped Mirror Pair 102222
Corning 7980 2F or equal		Round? = 25?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 1,000?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,600-1000nm)>99.6%, GDD=-40fs2


Chirped Mirror Pair 103803
Corning 7980 2F or equal		Round? = 25.4?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,600-1000nm)>99.6%, GDD=-40fs2


Chirped Mirror Pair 108579
Corning 7980 2F or equal		Round? = 25?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 700?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,600-1020nm)>99.8%, GDD=-50fs2


Chirped Mirror Pair 101568
Corning 7980 2F or equal		Round? = 12.7?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 100?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,640-1000nm)>99.8%, GDD=-70fs2

R(0°,510-545nm)<15%


Rear?Side   (S1)  Spectrum available

AR(0°,532nm)<0.25%


Chirped Mirror Pair 102098
Corning 7980 2F or equal		Round? = 12.7?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 75?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,640-1000nm)>99.8%

R(0°,510-545nm)<15%

GDD(0°,720-1000nm)=-70fs2


Rear?Side   (S1)  Spectrum available

AR(0°,510-545nm)<0.25%


Chirped Mirror Pair 102349
Corning 7980 2F or equal		Round? = 12.7?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 175?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,650-1000nm)>99.8%, GDD=-50fs2


Chirped Mirror Pair 102348
Corning 7980 2F or equal		Round? = 12.7?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 200?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,650-1000nm)>99.8%, GDD=-50fs2


Chirped Mirror Pair 141931
Corning 7980 2F or equal(Standard item)		Round? = 12.7?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRu(0-10°,670-970nm)>99.8%


Chirped Mirror Pair 141933
Corning 7980 2F or equal(Standard item)		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRu(0-10°,670-970nm)>99.8%


Chirped Mirror Pair 141934
Corning 7980(Standard item)		Rectangular40?mm ?x?10?mm

with marked corner

plane+planet = 12.5?mm		Front?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRu(0-10°,670-970nm)>99.8%


Chirped Mirror Pair 142351
Corning 7980 2F or equal(Standard item)		Round? = 12.7?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 38?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRs,p(0-10°,670-970nm)>99.8%

Rs,p(0-10°,515-535nm)<10%


Rear?Side   (S1)  Spectrum available

ARs,p(0-10°,500-545nm)<0.2%


Chirped Mirror Pair 142350
Corning 7980 2F or equal(Standard item)		Round? = 12.7?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 50?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRs,p(0-10°,670-970nm)>99.8%

Rs,p(0-10°,515-535nm)<10%


Rear?Side   (S1)  Spectrum available

ARs,p(0-10°,500-545nm)<0.2%


Chirped Mirror Pair 142349
Corning 7980 2F or equal(Standard item)		Round? = 12.7?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 75?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRs,p(0-10°,670-970nm)>99.8%

Rs,p(0-10°,515-535nm)<10%


Rear?Side   (S1)  Spectrum available

ARs,p(0-10°,500-545nm)<0.2%


Chirped Mirror Pair 142348
Corning 7980 2F or equal(Standard item)		Round? = 12.7?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 100?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRs,p(0-10°,670-970nm)>99.8%

Rs,p(0-10°,515-535nm)<10%


Rear?Side   (S1)  Spectrum available

ARs,p(0-10°,500-545nm)<0.2%


Chirped Mirror Pair 142347
Corning 7980 2F or equal(Standard item)		Round? = 12.7?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 125?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRs,p(0-10°,670-970nm)>99.8%

Rs,p(0-10°,515-535nm)<10%


Rear?Side   (S1)  Spectrum available

ARs,p(0-10°,500-545nm)<0.2%


Chirped Mirror Pair 152355
Corning 7980 2F or equal		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRs,p(0-10°,670-970nm)>99.8%

Rs,p(0-10°,515-535nm)<10%


Rear?Side   (S1)  Spectrum available

ARs,p(0-10°,500-545nm)<0.2%


Chirped Mirror Pair 110119
Corning 7980 2F or equal		Rectangular40?mm ?x?10?mmplane+planet = 12.5?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,670-1020nm)>99.8%

GDD(0°,730-850nm)=125fs2


Chirped Mirror Pair 110086
Corning 7980 2F or equal		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,680-980nm)>99.6%, GDD=-80-50fs2


Chirped Mirror Pair 108243
Corning 7980		Rectangular40?mm ?x?10?mm

with marked corner

plane+planet = 12.5?mm		Front?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,680-980nm)>99.6%, GDD=-80-50fs2


Chirped Mirror Pair 103873
Corning 7980 2F or equal		Round? = 12.7?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,680-1020nm)>99.8%, GDD=-50fs2

R(0°,490-535nm)<5%


Rear?Side   (S1)  Spectrum available

AR(0°,480-570nm)<0.25%


Chirped Mirror Pair 109088
Corning 7980 2F or equal		Round? = 12.7?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 150?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,680-1020nm)>99.8%, GDD=-50fs2

R(0°,490-535nm)<5%


Rear?Side   (S1)  Spectrum available

AR(0°,480-570nm)<0.25%


Chirped Mirror Pair 106811
Corning 7980		Round? = 12.7?mmplane+planet = 9.5?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,700-900nm)>99.8%, GDD=-50fs2


Chirped Mirror Pair 161071
Corning 7980 2F or equal		Round? = 12.7?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRp(7°,700-900nm)>99.9%

GDDp(7°,700-900nm)=-120fs2


Chirped Mirror Pair 148923
Corning 7980 2F or equal		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRp(7°,700-900nm)>99.9%

GDDp(7°,700-900nm)=-120fs2


Chirped Mirror Pair 168830
Corning 7980		Rectangular40?mm ?x?10?mm

with marked corner

plane+planet = 12.5?mm		Front?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRp(7°,700-900nm)>99.9%

GDDp(7°,700-900nm)=-120fs2


Chirped Mirror Pair 103028
Corning 7980 2F or equal		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,700-900nm)>99.9%, GDD=-65fs2


Chirped Mirror Pair 100469
Corning 7980 2F or equal		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,700-930nm)>99.9%, GDD=-65fs2


Chirped Mirror Pair 102760
Corning 7980 2F or equal		Round? = 25?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 100?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,700-930nm)>99.9%, GDD=-65fs2


Chirped Mirror Pair 109347
Corning 7980		Rectangular40?mm ?x?10?mm

with marked corner

plane+planet = 12.5?mm		Front?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,700-950nm)>99.85%, GDD=-60--30fs2


Chirped Mirror Pair 109348
Corning 7980 2F or equal		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,700-970nm)>99.85%

GDD(0°,700-950nm)=-60--30fs2


Chirped Mirror Pair 109346
Corning 7980		Rectangular45?mm ?x?15?mmplane+planet = 12.5?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,700-970nm)>99.85%

GDD(0°,700-950nm)=-60--30fs2


Chirped Mirror Pair 103467
Corning 7980 2F or equal		Round? = 12.7?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,700-980nm)>99.7%, GDD=-70fs2

R(0°,515-545nm)<10%


Rear?Side   (S1)  Spectrum available

AR(0°,480-570nm)<0.25%


Chirped Mirror Pair 103469
Corning 7980 2F or equal		Round? = 12.7?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 30?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,700-980nm)>99.7%, GDD=-70fs2

R(0°,515-545nm)<10%


Rear?Side   (S1)  Spectrum available

AR(0°,480-570nm)<0.25%


Chirped Mirror Pair 103468
Corning 7980 2F or equal		Round? = 12.7?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 50?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,700-980nm)>99.7%, GDD=-70fs2

R(0°,515-545nm)<10%


Rear?Side   (S1)  Spectrum available

AR(0°,480-570nm)<0.25%


Chirped Mirror Pair 106590
Corning 7980 2F or equal		Round? = 12.7?mmplane+planet = 9.5?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,710-940nm)>99.9%

GDD(0-12°,740-870nm)=-350-350fs2


Chirped Mirror Pair 104983
Corning 7980 2F or equal		Round? = 12.7?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 50?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,720-1000nm)>99.8%, GDD=-70fs2

R(0°,510-545nm)<15%


Rear?Side   (S1)  Spectrum available

AR(0°,532nm)<0.25%


Chirped Mirror Pair 108335
Corning 7980 2F or equal		Round? = 25?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 600?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,720-1000nm)>99.8%, GDD=-70fs2

R(0°,510-545nm)<15%


Rear?Side   (S1)  Spectrum available

AR(0°,532nm)<0.2%


Chirped Mirror Pair 105105
Corning 7980 2F or equal		Round? = 25?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 800?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,720-1000nm)>99.8%, GDD=-70fs2

R(0°,510-545nm)<15%


Rear?Side   (S1)  Spectrum available

AR(0°,532nm)<0.2%


Chirped Mirror Pair 141920
Corning 7980 2F or equal(Standard item)		Round? = 12.7?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRs,p(0-10°,725-875nm)>99.8%, GDD=-110fs2


Chirped Mirror Pair 141882
Corning 7980 2F or equal(Standard item)		Round? = 12.7?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRs,p(0-10°,725-875nm)>99.8%, GDD=-40fs2


Chirped Mirror Pair 141884
Corning 7980 2F or equal(Standard item)		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRs,p(0-10°,725-875nm)>99.8%, GDD=-40fs2


Chirped Mirror Pair 141919
Corning 7980 2F or equal(Standard item)		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRs,p(0-10°,725-875nm)>99.8%, GDD=-110fs2


Chirped Mirror Pair 141918
Corning 7980(Standard item)		Rectangular40?mm ?x?10?mm

with marked corner

plane+planet = 12.5?mm		Front?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRs,p(0-10°,725-875nm)>99.8%, GDD=-110fs2


Chirped Mirror Pair 141886
Corning 7980(Standard item)		Rectangular40?mm ?x?10?mm

with marked corner

plane+planet = 12.5?mm		Front?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)  Spectrum available

HRs,p(0-10°,725-875nm)>99.8%, GDD=-40fs2


Chirped Mirror Pair 141887
Corning 7980 2F or equal(Standard item)		Round? = 12.7?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HRs,p(0-10°,725-875nm)>99.9%, GDD=-80fs2


Chirped Mirror Pair 141888
Corning 7980 2F or equal(Standard item)		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HRs,p(0-10°,725-875nm)>99.9%, GDD=-80fs2


Chirped Mirror Pair 141891
Corning 7980(Standard item)		Rectangular40?mm ?x?10?mm

with marked corner

plane+planet = 12.5?mm		Front?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HRs,p(0-10°,725-875nm)>99.9%, GDD=-80fs2


Chirped Mirror Pair 106886
Corning 7980 2F or equal		Round? = 25?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 1,500?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,730-970nm)>99.8%, GDD=-70fs2


Chirped Mirror Pair 110121
Corning 7980 2F or equal		Rectangular40?mm ?x?10?mmplane+planet = 12.5?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HRu(0-5°,770-990nm)>99.8%, GDD=-120fs2


Chirped Mirror Pair 102759
Corning 7980 2F or equal		Round? = 12.7?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 150?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,1040-1460nm)>99.8%, GDD=-120fs2


Chirped Mirror Pair 107437
Corning 7980 2F or equal		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,1040-1460nm)>99.8%, GDD=-120fs2


Chirped Mirror Pair 108947
Corning 7980 2F or equal		Round? = 12.7?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,1060-1600nm)>99.8%, GDD=-150fs2


Chirped Mirror Pair 108948
Corning 7980 2F or equal		Round? = 12.7?mmconcave+planet = 6.35?mmFront?Side  (S2)concave
concave
r = 150?mm
Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,1060-1600nm)>99.8%, GDD=-150fs2


Chirped Mirror Pair 108949
Corning 7980 2F or equal		Round? = 25?mmplane+planet = 6.35?mmFront?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,1060-1600nm)>99.8%, GDD=-150fs2


Chirped Mirror Pair 156961
Corning 7980		Rectangular40?mm ?x?10?mm

with marked corner

plane+planet = 12.5?mm		Front?Side  (S2)plane
plane

Rear?Side  (S1)plane
plane
Front?Side   (S2)

HR(0°,1060-1600nm)>99.8%, GDD=-150fs2





相關產品
  • ＞99.5% 光纖鍍膜反射鏡 980/1310/1550/2000nm
  • 超光滑超高（反射率＞99.995%）反射率鏡 平面/凹面鏡
  • LAYERTEC 激光反射鏡 品牌匯總 (高功率轉向鏡/掃描鏡/..
  • LAYERTEC 轉向鏡 (高功率反射鏡)
  • 光腔衰蕩低色散高反射鏡片,標準版激光反射鏡(平凹) 150..
  • MaxR高反射涂層Cu銅反射鏡(用于CO2激光腔鏡)









    • 使用本網站,即表示您同意我們使用cookie.它可以幫助更好地提供會員服務以及短時間內記錄您的瀏覽記錄
    已知曉 了解詳情
    提示
