可見光機器視覺鏡頭 400-700nm 600萬像素系列
600萬像素系列型號列表
2/3''靶面尺寸 | |||||
| 產品規格 | 分辨率 | 接口 | 焦距 | F值 | 光圈類型 |
| NV0820M6M | 170lp/mm | C | 8mm | F2.0~F16 | Manual |
| NV1220M6M | 170lp/mm | C | 12mm | F2.0~F16 | Manual |
| NV1620M6M | 170lp/mm | C | 16mm | F2.0~F16 | Manual |
| NV2520M6M | 170lp/mm | C | 25mm | F2.0~F16 | Manual |
| NV3520M6M | 170lp/mm | C | 35mm | F2.0~F16 | Manual |
| NV5020M6M | 170lp/mm | C | 50mm | F2.0~F16 | Manual |
| NV7538M6M | 6MP | C | 75mm | 3.8 | Manual |
NV5020M6M參數表
| No. | 名稱(Name) | 規格(Specification) | No. | 名稱(Name) | 規格(Specification) | ||||
| 1 | 型號(Model) | NV5020M6M | 14 | 視場角F.O.V(DxVxH) | " | 2/3 | 1/2 | 1/3 | |
| 2 | 物料代碼(Material Code) | - | D | 10.50 | 7.67 | 5.70 | |||
| 3 | 靶面格式(lmage Format) | 2/3" | H | 8.41 | 6.10 | 4.52 | |||
| 4 | 分辨率(Resolution) | 6MP | V | 6.3 | 4.52 | 3.37 | |||
| 5 | 焦距(Focal Length) | 50mm | 15 | 接口(Mount) | C | ||||
| 6 | 后截距(Back Focus) | 7.26mm | 16 | 適用物距 (Suitable Distance) | 0.2m~～∞ m | ||||
| 7 | F值(F/No.) | 2.0 | 17 | z佳物距 (Optimum Working Distance) | 0.2-0.4m | ||||
| 8 | 光圈(Iris Type) | Manual | 18 | 鍍膜(Coating) | 400-950nm | ||||
| 9 | 畸變(Distortion) | <-0.05% | 19 | 外形尺寸(Dimention) | Φ 43.2-62.74 | ||||
| 10 | 通光口徑 (Lens Effective Diameter) | 前面(Front) | Φ23.99mm | 20 | 重量(Weight) | / | |||
| 后面(Back) | Φ12.31mm | 21 | 工作溫度 (Operating Temperature) | -20~+65℃ | |||||
| 11 | 相對照度 (Relative llluminate) | 65% | 22 | 鏡頭組成 (Lens Construction) | 9-5 | ||||
| 12 | 光學總長(TTL) | 58mm | 23 | Max. 主光線入射角 (CRA) | 6.48° | ||||
| 13 | 設計波長 (Design Wavelength) | 400-700nm | 24 | 濾鏡尺寸 (Filter Thread) | M37.5×0.5 | ||||
NV0820M6M參數表
| No. | 名稱(Name) | 規格(Specification) | No. | 名稱(Name) | 規格(Specification) | ||||
| 1 | 型號(Model) | NV0820M6M | 14 | 視場角F.O.V(DxVxH) | " | 2/3 | 1/2 | 1/3 | |
| 2 | 物料代碼(Material Code) | - | D | 69 | 53.13 | 41.11 | |||
| 3 | 靶面格式(lmage Format) | 2/3" | H | 57.62 | 43.6 | 33.4 | |||
| 4 | 分辨率(Resolution) | 6MP | V | 44.83 | 33.4 | 25.36 | |||
| 5 | 焦距(Focal Length) | 8mm | 15 | 接口(Mount) | C | ||||
| 6 | 后截距(Back Focus) | 12.476mm | 16 | 適用物距 (Suitable Distance) | 0.1m~～∞ m | ||||
| 7 | F值(F/No.) | 2.0 | 17 | z佳物距 (Optimum Working Distance) | 0.2-0.4m | ||||
| 8 | 光圈(Iris Type) | Manual | 18 | 鍍膜(Coating) | 400-950nm | ||||
| 9 | 畸變(Distortion) | <-0.45% | 19 | 外形尺寸(Dimention) | Φ 61-59.34 | ||||
| 10 | 通光口徑 (Lens Effective Diameter) | 前面(Front) | Φ33.31mm | 20 | 重量(Weight) | 110.8g | |||
| 后面(Back) | Φ12.14mm | 21 | 工作溫度 (Operating Temperature) | -20~+65℃ | |||||
| 11 | 相對照度 (Relative llluminate) | 63.8% | 22 | 鏡頭組成 (Lens Construction) | 12-9 | ||||
| 12 | 光學總長(TTL) | 74.97 | 23 | Max. 主光線入射角 (CRA) | 6.69° | ||||
| 13 | 設計波長 (Design Wavelength) | 400-700nm | 24 | 濾鏡尺寸 (Filter Thread) | M58×0.75 | ||||

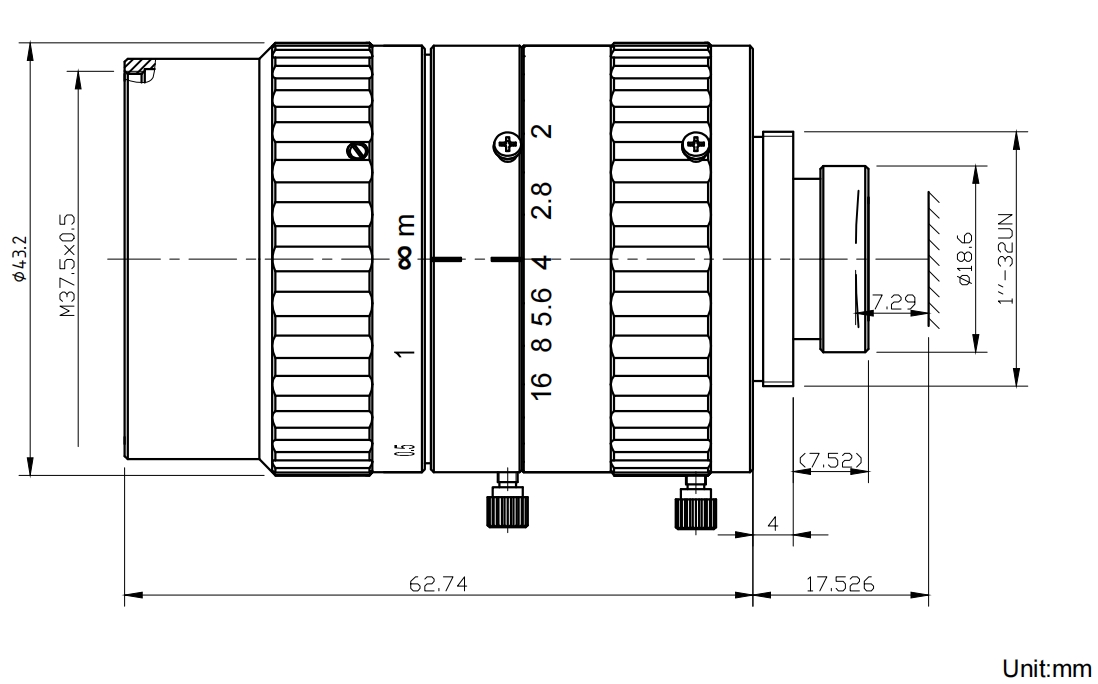

NV5020M6M尺寸圖
NV0820M6M尺寸圖
