AgiltronCrystaLatch系列筱曉光子引進的高性價比CrystaLatch 1x1，1x2 CL系列1x1，1x2帶尾纖光開關可以將輸入光通道和被選的輸出光通道連接起來，實現不同光路之間的切換。光路間的切換基于已獲得專 利權的結構設計和電信號驅動來實現。本產品具 有獨te的閉鎖功能，從而保證光路在斷電后仍穩定可靠的運行。全固態設計的CL系列1x1，1x2帶尾纖光開關具有低插入損耗，高消光比和良好的重復性等優點。該產品響應速度快，可以滿足大部分光開關應用領域的需求，實現光路的不間斷、無故障傳輸，對復雜環境如機械震動、沖擊，和溫度沖擊具有優異的適應能力。
● 無異動部件，使用壽命長
● 切換速度超快
● 極其穩定的鎖存模式
● 低功耗
● 一端出纖-易于繞纖
● 具有超常的可靠性和穩定性
● 光路切換
● 高速保護系統
● 系統監控
● 測試測量
● 光纖傳感系統
1x1,1x2光開關技術指標
NS系列 1X1光開關/調制器 | 最小值 | 典型值 | 最大值 | 單位 | |
工作波長 | 780 | 1800 | |||
插入損耗 | 1260-1800nm | 0.6 | 1.0 | dB | |
960-1260nm | 0.8 | 1.3 | |||
760-960nm | 1.0 | 1.5 | |||
隔離度 | 20 | 25 | dB | ||
偏振相關損耗 | 0.15 | 0.35 | dB | ||
插入損耗溫度相關性 | 0.25 | 0.5 | dB | ||
偏振模式色散 | 0.1 | 0.3 | ps | ||
回波損耗 | 45 | 50 | dB | ||
響應速度（上升沿，下降沿） | 300 | ns | |||
重復頻率 | DC | 2k | Hz | ||
工作溫度 | -5 | 70 | ℃ | ||
光功率限制 | 300 | 500 | mW | ||
儲存溫度 | -40 | 85 | ℃ | ||
封裝尺寸 | 57.5x7.35x9.7 | mm | |||

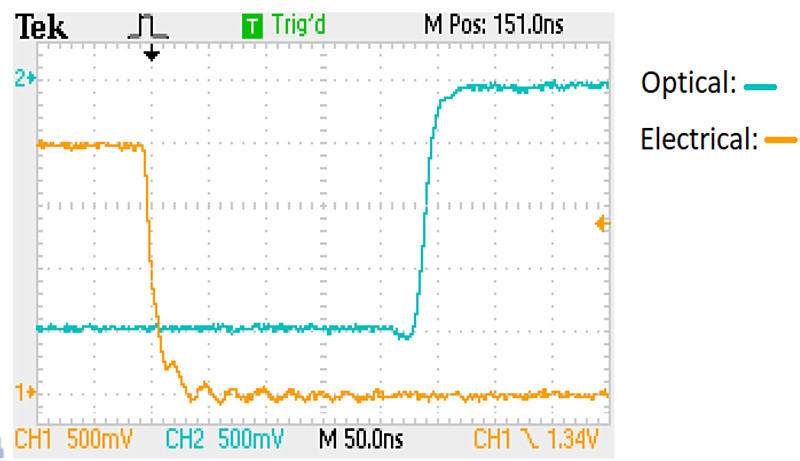

典型響應速度測量
典型帶寬測量
光路驅動表
Optical Path | TTL Signal |
ON for normal-open or OFF for normal-dark | L (< 0.8V) |
OFF for normal-open or ON for normal-dark | H ( > 3.5V) |
驅動電路板
Maximum Repetition Rate | Part Number (P/N) |
5kHz | SWDR-11a251111 |
100kHz | SWDR-11a261111 |
500kHz | SWDR-11a291111 |
備注: 對于自己設計其驅動電路的客戶，他們負責光學性能。有關更多技術信息，請與我們聯系。

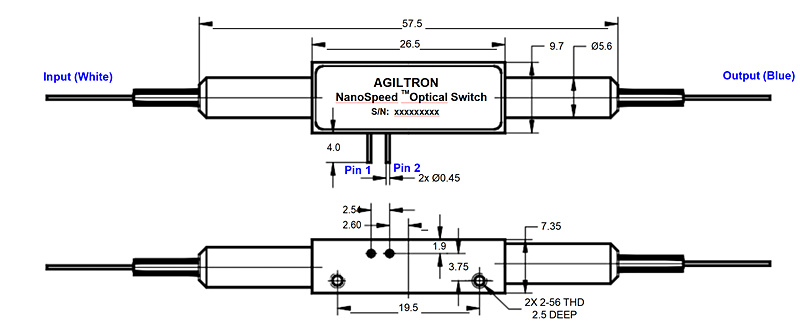

普通功率版本

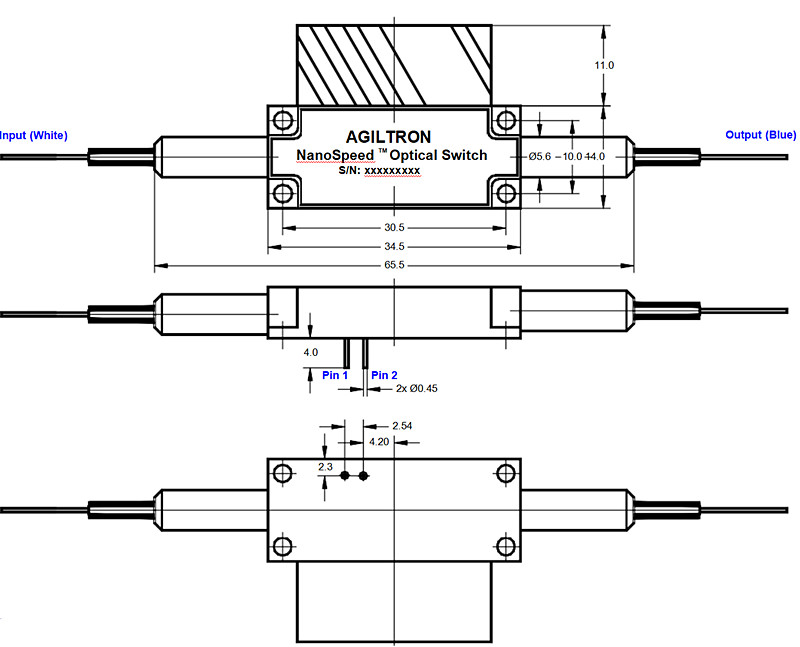

高功率版本
□□□□ | 1 1 | □ | □ | □ | □ | □ | □ |
Type | Wavelength [1] | Configuration | Fiber Type | Fiber Length | Connector [2] | ||
NSSW=Normal Power | 1x1=11 | 1060nm=1 | Normally open /Single Stage= 11 Normally Opaque/Single Stage=21
Normally open/Dual Stage= 12 Normally Opaque/Dual Stage=22 | SMF-28=1 | Bare Fiber=1 | 0.25m=1 | None=1 |
NHSW=2 W | 2000nm = 2 | HI1060=2 | 900um Tube=3 | 0.5m=2 | FC/PC=2 | ||
NHHW=5W | 1310nm=3 | HI780=3 | Special=0 | 1.0 m=3 | FC/APC= 3 | ||
1410nm=4 | PM1550=5 | Special=0 | SC/PC=4 | ||||
1550nm=5 | PM980=9 | SC/APC=5 | |||||
1625nm=6 | Special=0 | ST/PC=6 | |||||
850nm=8 | LC/PC=7 | ||||||
780nm=7 | Duplex LC=8 | ||||||
650=E | LC/APC=9 | ||||||
550=F | Special=0 | ||||||
400=G | |||||||
Special=0 | |||||||
常見問題解答：
Q: Does NS device drift over time and temperature?
A: NS devices are based on electro-optical crystal materials that can be influenced to a certain range by the environmental variations. The insertion loss of the device is only affected by the thermal expansion induced miss-alignment. For extended temperature operation, we offer special packaging to -40 -100 0C. The extinction or cross-talk value is affected by many EO material characters, including temperature-dependent birefringence, Vp, temperature gradient, optical power, at resonance points (electronic). However, the devices are designed to meet the minimum extinction/cross- talk stated on the spec sheets. It is important to avoid a temperature gradient along the device length.
Q: What is the actual applying voltage on the device?
A: 100 to 400V depending on the version.
Q: How does the device work?
A: NS devices are not based on Mach-Zander Interference, rather birefringence crystal’s nature beam displacement, in which the crystal creates two different paths for beams with different polarization orientations.
Q: What is the limitation for faster operation?
A: NS devces have been tested to have an optical response of about 300 ps. However, practical implementation limits the response speeds. It is possible to achieve a much faster response when operated at partial extinction value. We also offer resonance devices over 20MHz with low electrical power consumption.
