DCM-PC 產品將連續調制的光纖布拉格光柵（FBG）色散補償能力與普通補丁電纜的簡便性相結合。此色散補償模塊（DCM）解決方案旨在為尋求簡單且成本效益高的色散補償方案的系統供應商或運營商提供解決方案。
DCM-PC 覆蓋了廣泛的應用領域，從基本的時分多路復用（TDM）基礎的城域和區域網絡，到海底 DWDM 終端中的頻道或子帶特定的剩余色散補償。
本文檔概述了 760 GHz 的帶通 DCM-PC。該設計涵蓋了與八個 100 GHz 間隔的 ITU 通道相對應的頻率/波長范圍。
（請注意，該產品可以用于任何符合上述頻率/波長范圍的通道規劃）。
縮略語和縮寫
縮寫 | 描述 |
DCM | 色散補償模塊 |
FBG | 光纖布拉格光柵 |
PMD | 偏振模色散 |
DGD | 群時延 |
IL | 插入損耗 |
PDL | 偏振相關損耗 |
EOL | 使用壽命結束 |
GD | 群時延 |
PC | 跳線 |
光學設計

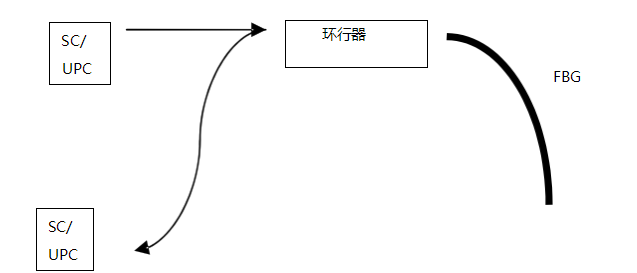

圖1 Proximion DCM-PC的光學設計
用于在不同波長之間創建延遲的光纖布拉格光柵（FBG）通過熔融連接到一個三端口光環行器。光環行器的輸入/輸出端口與SC/UPC連接器的光纖尾纖拼接，以形成DCM-PC單元。
產品編號：
以下表格描述了Proximion使用的產品編號。
型號 1
描述 | Proximion 產品編號 |
PC, -200 ps/nm, 1536.373/ 1542.380 nm, 194370/195130 GHz | PC-N0101-N0200SP |
PC,+200 ps/nm, 1536.373/ 1542.380 nm, 194370/195130 GHz | PC-N0102-P0200SP |
PC, -400 ps/nm, 1536.373/ 1542.380 nm, 194370/195130 GHz | PC-N0103-N0400SP |
PC, +400 ps/nm, 1536.373/1542.380 nm, 194370/195130 GHz | PC-N0104-P0400SP |
PC, -600 ps/nm, 1536.373/ 1542.380 nm, 194370/195130 GHz | PC-N0105-N0600SP |
PC, +600 ps/nm, 1536.373/1542.380 nm, 194370/195130 GHz | PC-N0106-P0600SP |
PC, -800 ps/nm, 1536.373/ 1542.380 nm, 194370/195130 GHz | PC-N0107-N0800SP |
PC, +800 ps/nm, 1536.373/1542.380 nm, 194370/195130 GHz | PC-N0108-P0800SP |
PC, -1000 ps/nm, 1536.373/1542.380 nm, 194370/195130 GHz | PC-N0109-N1000SP |
PC, +1000 ps/nm, 1536.373/1542.380 nm, 194370/195130 GHz | PC-N0110-P1000SP |
PC, -1200 ps/nm, 1536.373/1542.380 nm, 194370/195130 GHz | PC-N0111-N1200SP |
PC, +1200 ps/nm, 1536.373/1542.380 nm, 194370/195130 GHz | PC-N0112-P1200SP |
PC, -1300 ps/nm, 1536.373/1542.380 nm, 194370/195130 GHz | PC-N0113-N1300SP |
PC, +1300 ps/nm, 1536.373/1542.380 nm, 194370/195130 GHz | PC-N0114-P1300SP |
型號 2
描述 | Proximion 產品編號 |
PC, -200 ps/nm, 1538.74/1544.76 nm, 194070/ 194830 GHz | PC-N0001-N0200SP |
PC,+200 ps/nm, 1538.74/ 1544.76 nm, 194070/ 194830 GHz | PC-N0002-P0200SP |
PC, -400 ps/nm, 1538.74/1544.76 nm, 194070/ 194830 GHz | PC-N0003-N0400SP |
PC, +400 ps/nm, 1538.74/1544.76 nm, 194070/ 194830 GHz | PC-N0004-P0400SP |
PC, -600 ps/nm, 1538.74/1544.76 nm, 194070/ 194830 GHz | PC-N0005-N0600SP |
PC, +600 ps/nm, 1538.74/1544.76 nm, 194070/ 194830 GHz | PC-N0006-P0600SP |
PC, -800 ps/nm, 1538.74/1544.76 nm, 194070/ 194830 GHz | PC-N0007-N0800SP |
PC, +800 ps/nm, 1538.74/1544.76 nm, 194070/ 194830 GHz | PC-N0008-P0800SP |
PC, -1000 ps/nm, 1538.74/1544.76 nm, 194070/194830 GHz | PC-N0009-N1000SP |
PC, +1000 ps/nm, 1538.74/ 1544.76 nm, 194070/194830 GHz | PC-N0010-P1000SP |
PC, -1200 ps/nm, 1538.74/1544.76 nm, 194070/194830 GHz | PC-N0011-N1200SP |
PC, +1200 ps/nm, 1538.74/ 1544.76 nm, 194070/194830 GHz | PC-N0012-P1200SP |
PC, -1300 ps/nm, 1538.74/1544.76 nm, 194070/194830 GHz | PC-N0013-N1300SP |
PC, +1300 ps/nm, 1538.74/ 1544.76 nm, 194070/194830 GHz | PC-N0014-P1300SP |
型號 3
描述 | Proximion 產品編號 |
PC, -200 ps/nm, 1542.698/ 1548.755 nm, 193570/194330 GHz | PC-N0141-N0200SP |
PC,+200 ps/nm, 1542.698/ 1548.755 nm, 193570/194330 GHz | PC-N0142-P0200SP |
PC, -400 ps/nm, 1542.698/ 1548.755 nm, 193570/194330 GHz | PC-N0143-N0400SP |
PC, +400 ps/nm, 1542.698/1548.755 nm, 193570/194330 GHz | PC-N0144-P0400SP |
PC, -600 ps/nm, 1542.698/ 1548.755 nm, 193570/194330 GHz | PC-N0145-N0600SP |
PC, +600 ps/nm, 1542.698/1548.755 nm, 193570/194330 GHz | PC-N0146-P0600SP |
PC, -800 ps/nm, 1542.698/ 1548.755 nm, 193570/194330 GHz | PC-N0147-N0800SP |
PC, +800 ps/nm, 1542.698/1548.755 nm, 193570/194330 GHz | PC-N0148-P0800SP |
PC, -1000 ps/nm, 1542.698/1548.755 nm, 193570/194330 GHz | PC-N0149-N1000SP |
PC, +1000 ps/nm, 1542.698/1548.755 nm, 193570/194330 GHz | PC-N0150-P1000SP |
PC, -1200 ps/nm, 1542.698/1548.755 nm, 193570/194330 GHz | PC-N0151-N1200SP |
PC, +1200 ps/nm, 1542.698/1548.755 nm, 193570/194330 GHz | PC-N0152-P1200SP |
PC, -1300 ps/nm, 1542.698/1548.755 nm, 193570/194330 GHz | PC-N0153-N1300SP |
PC, +1300 ps/nm, 1542.698/1548.755 nm, 193570/194330 GHz | PC-N0154-P1300SP |
型號 4
描述 | Proximion 產品編號 |
PC, -200 ps/nm, 1545.880/ 1551.962 nm, 193170/193930 GHz | PC-N0161-N0200SP |
PC,+200 ps/nm, 1545.880/ 1551.962 nm, 193170/193930 GHz | PC-N0162-P0200SP |
PC, -400 ps/nm, 1545.880/ 1551.962 nm, 193170/193930 GHz | PC-N0163-N0400SP |
PC, +400 ps/nm, 1545.880/1551.962 nm, 193170/193930 GHz | PC-N0164-P0400SP |
PC, -600 ps/nm, 1545.880/ 1551.962 nm, 193170/193930 GHz | PC-N0165-N0600SP |
PC, +600 ps/nm, 1545.880/1551.962 nm, 193170/193930 GHz | PC-N0166-P0600SP |
PC, -800 ps/nm, 1545.880/ 1551.962 nm, 193170/193930 GHz | PC-N0167-N0800SP |
PC, +800 ps/nm, 1545.880/1551.962 nm, 193170/193930 GHz | PC-N0168-P0800SP |
PC, -1000 ps/nm, 1545.880/1551.962 nm, 193170/193930 GHz | PC-N0169-N1000SP |
PC, +1000 ps/nm, 1545.880/1551.962 nm, 193170/193930 GHz | PC-N0170-P1000SP |
PC, -1200 ps/nm, 1545.880/1551.962 nm, 193170/193930 GHz | PC-N0171-N1200SP |
PC, +1200 ps/nm, 1545.880/1551.962 nm, 193170/193930 GHz | PC-N0172-P1200SP |
PC, -1300 ps/nm, 1545.880/1551.962 nm, 193170/193930 GHz | PC-N0173-N1300SP |
PC, +1300 ps/nm, 1545.880/1551.962 nm, 193170/193930 GHz | PC-N0174-P1300SP |
型號 5
描述 | Proximion 產品編號 |
PC, -200 ps/nm, 1549.075/ 1555.182 nm, 192770/193530 GHz | PC-N0181-N0200SP |
PC,+200 ps/nm, 1549.075/ 1555.182 nm, 192770/193530 GHz | PC-N0182-P0200SP |
PC, -400 ps/nm, 1549.075/ 1555.182 nm, 192770/193530 GHz | PC-N0183-N0400SP |
PC, +400 ps/nm, 1549.075/1555.182 nm, 192770/193530 GHz | PC-N0184-P0400SP |
PC, -600 ps/nm, 1549.075/ 1555.182 nm, 192770/193530 GHz | PC-N0185-N0600SP |
PC, +600 ps/nm, 1549.075/1555.182 nm, 192770/193530 GHz | PC-N0186-P0600SP |
PC, -800 ps/nm, 1549.075/ 1555.182 nm, 192770/193530 GHz | PC-N0187-N0800SP |
PC, +800 ps/nm, 1549.075/1555.182 nm, 192770/193530 GHz | PC-N0188-P0800SP |
PC, -1000 ps/nm, 1549.075/1555.182 nm, 192770/193530 GHz | PC-N0189-N1000SP |
PC, +1000 ps/nm, 1549.075/1555.182 nm, 192770/193530 GHz | PC-N0190-P1000SP |
PC, -1200 ps/nm, 1549.075/1555.182 nm, 192770/193530 GHz | PC-N0191-N1200SP |
PC, +1200 ps/nm, 1549.075/1555.182 nm, 192770/193530 GHz | PC-N0192-P1200SP |
PC, -1300 ps/nm, 1549.075/1555.182 nm, 192770/193530 GHz | PC-N0193-N1300SP |
PC, +1300 ps/nm, 1549.075/1555.182 nm, 192770/193530 GHz | PC-N0194-P1300SP |
型號 6
描述 | Proximion 產品編號 |
PC, -200 ps/nm, 1552.283/ 1558.416 nm, 192370/193130 GHz | PC-N0201-N0200SP |
PC,+200 ps/nm, 1552.283/ 1558.416 nm, 192370/193130 GHz | PC-N0202-P0200SP |
PC, -400 ps/nm, 1552.283/ 1558.416 nm, 192370/193130 GHz | PC-N0203-N0400SP |
PC, +400 ps/nm, 1552.283/1558.416 nm, 192370/193130 GHz | PC-N0204-P0400SP |
PC, -600 ps/nm, 1552.283/ 1558.416 nm, 192370/193130 GHz | PC-N0205-N0600SP |
PC, +600 ps/nm, 1552.283/1558.416 nm, 192370/193130 GHz | PC-N0206-P0600SP |
PC, -800 ps/nm, 1552.283/ 1558.416 nm, 192370/193130 GHz | PC-N0207-N0800SP |
PC, +800 ps/nm, 1552.283/1558.416 nm, 192370/193130 GHz | PC-N0208-P0800SP |
PC, -1000 ps/nm, 1552.283/1558.416 nm, 192370/193130 GHz | PC-N0209-N1000SP |
PC, +1000 ps/nm, 1552.283/1558.416 nm, 192370/193130 GHz | PC-N0210-P1000SP |
PC, -1200 ps/nm, 1552.283/1558.416 nm, 192370/193130 GHz | PC-N0211-N1200SP |
PC, +1200 ps/nm, 1552.283/1558.416 nm, 192370/193130 GHz | PC-N0212-P1200SP |
PC, -1300 ps/nm, 1552.283/1558.416 nm, 192370/193130 GHz | PC-N0213-N1300SP |
PC, +1300 ps/nm, 1552.283/1558.416 nm, 192370/193130 GHz | PC-N0214-P1300SP |
型號 7
描述 | Proximion 產品編號 |
PC, -200 ps/nm, 1555.505/ 1561.663 nm, 191970/192730 GHz | PC-N0221-N0200SP |
PC,+200 ps/nm, 1555.505/ 1561.663 nm, 191970/192730 GHz | PC-N0222-P0200SP |
PC, -400 ps/nm, 1555.505/ 1561.663 nm, 191970/192730 GHz | PC-N0223-N0400SP |
PC, +400 ps/nm, 1555.505/1561.663 nm, 191970/192730 GHz | PC-N0224-P0400SP |
PC, -600 ps/nm, 1555.505/ 1561.663 nm, 191970/192730 GHz | PC-N0225-N0600SP |
PC, +600 ps/nm, 1555.505/1561.663 nm, 191970/192730 GHz | PC-N0226-P0600SP |
PC, -800 ps/nm, 1555.505/ 1561.663 nm, 191970/192730 GHz | PC-N0227-N0800SP |
PC, +800 ps/nm, 1555.505/1561.663 nm, 191970/192730 GHz | PC-N0228-P0800SP |
PC, -1000 ps/nm, 1555.505/1561.663 nm, 191970/192730 GHz | PC-N0229-N1000SP |
PC, +1000 ps/nm, 1555.505/1561.663 nm, 191970/192730 GHz | PC-N0230-P1000SP |
PC, -1200 ps/nm, 1555.505/1561.663 nm, 191970/192730 GHz | PC-N0231-N1200SP |
PC, +1200 ps/nm, 1555.505/1561.663 nm, 191970/192730 GHz | PC-N0232-P1200SP |
PC, -1300 ps/nm, 1555.505/1561.663 nm, 191970/192730 GHz | PC-N0233-N1300SP |
PC, +1300 ps/nm, 1555.505/1561.663 nm, 191970/192730 GHz | PC-N0234-P1300SP |
型號 8
描述 | Proximion 產品編號 |
PC, -200 ps/nm, 1559.551/ 1565.741 nm, 191470/192230 GHz | PC-N0241-N0200SP |
PC,+200 ps/nm, 1559.551/ 1565.741 nm, 191470/192230 GHz | PC-N0242-P0200SP |
PC, -400 ps/nm, 1559.551/ 1565.741 nm, 191470/192230 GHz | PC-N0243-N0400SP |
PC, +400 ps/nm, 1559.551/1565.741 nm, 191470/192230 GHz | PC-N0244-P0400SP |
PC, -600 ps/nm, 1559.551/ 1565.741 nm, 191470/192230 GHz | PC-N0245-N0600SP |
PC, +600 ps/nm, 1559.551/1565.741 nm, 191470/192230 GHz | PC-N0246-P0600SP |
PC, -800 ps/nm, 1559.551/ 1565.741 nm, 191470/192230 GHz | PC-N0247-N0800SP |
PC, +800 ps/nm, 1559.551/1565.741 nm, 191470/192230 GHz | PC-N0248-P0800SP |
PC, -1000 ps/nm, 1559.551/1565.741 nm, 191470/192230 GHz | PC-N0249-N1000SP |
PC, +1000 ps/nm, 1559.551/1565.741 nm, 191470/192230 GHz | PC-N0250-P1000SP |
PC, -1200 ps/nm, 1559.551/1565.741 nm, 191470/192230 GHz | PC-N0251-N1200SP |
PC, +1200 ps/nm, 1559.551/1565.741 nm, 191470/192230 GHz | PC-N0252-P1200SP |
PC, -1300 ps/nm, 1559.551/1565.741 nm, 191470/192230 GHz | PC-N0253-N1300SP |
PC, +1300 ps/nm, 1559.551/1565.741 nm, 191470/192230 GHz | PC-N0254-P1300SP |
型號 9
描述 | Proximion 產品編號 |
PC, -200 ps/nm, 1561.989/ 1568.198 nm, 191170/191930 GHz | PC-N0261-N0200SP |
PC,+200 ps/nm, 1561.989/ 1568.198 nm, 191170/191930 GHz | PC-N0262-P0200SP |
PC, -400 ps/nm, 1561.989/ 1568.198 nm, 191170/191930 GHz | PC-N0263-N0400SP |
PC, +400 ps/nm, 1561.989/1568.198 nm, 191170/191930 GHz | PC-N0264-P0400SP |
PC, -600 ps/nm, 1561.989/ 1568.198 nm, 191170/191930 GHz | PC-N0265-N0600SP |
PC, +600 ps/nm, 1561.989/1568.198 nm, 191170/191930 GHz | PC-N0266-P0600SP |
PC, -800 ps/nm, 1561.989/ 1568.198 nm, 191170/191930 GHz | PC-N0267-N0800SP |
PC, +800 ps/nm, 1561.989/1568.198 nm, 191170/191930 GHz | PC-N0268-P0800SP |
PC, -1000 ps/nm, 1561.989/1568.198 nm, 191170/191930 GHz | PC-N0269-N1000SP |
PC, +1000 ps/nm, 1561.989/1568.198 nm, 191170/191930 GHz | PC-N0270-P1000SP |
PC, -1200 ps/nm, 1561.989/1568.198 nm, 191170/191930 GHz | PC-N0271-N1200SP |
PC, +1200 ps/nm, 1561.989/1568.198 nm, 191170/191930 GHz | PC-N0272-P1200SP |
PC, -1300 ps/nm, 1561.989/1568.198 nm, 191170/191930 GHz | PC-N0273-N1300SP |
PC, +1300 ps/nm, 1561.989/1568.198 nm, 191170/191930 GHz | PC-N0274-P1300SP |
型號 11
描述 | Proximion 產品編號 |
PC, -200 ps/nm, 1530.100/ 1536.058 nm, 195170/195930 GHz | PC-N0301-N0200SP |
PC,+200 ps/nm, 1530.100/ 1536.058 nm, 195170/195930 GHz | PC-N0302-P0200SP |
PC, -400 ps/nm, 1530.100/ 1536.058 nm, 195170/195930 GHz | PC-N0303-N0400SP |
PC, +400 ps/nm, 1530.100/1536.058 nm, 195170/195930 GHz | PC-N0304-P0400SP |
PC, -600 ps/nm, 1530.100/ 1536.058 nm, 195170/195930 GHz | PC-N0305-N0600SP |
PC, +600 ps/nm, 1530.100/1536.058 nm, 195170/195930 GHz | PC-N0306-P0600SP |
PC, -800 ps/nm, 1530.100/ 1536.058 nm, 195170/195930 GHz | PC-N0307-N0800SP |
PC, +800 ps/nm, 1530.100/1536.058 nm, 195170/195930 GHz | PC-N0308-P0800SP |
PC, -1000 ps/nm, 1530.100/1536.058 nm, 195170/195930 GHz | PC-N0309-N1000SP |
PC, +1000 ps/nm, 1530.100/1536.058 nm, 195170/195930 GHz | PC-N0310-P1000SP |
PC, -1200 ps/nm, 1530.100/1536.058 nm, 195170/195930 GHz | PC-N0311-N1200SP |
PC, +1200 ps/nm, 1530.100/1536.058 nm, 195170/195930 GHz | PC-N0312-P1200SP |
PC, -1300 ps/nm, 1530.100/1536.058 nm, 195170/195930 GHz | PC-N0313-N1300SP |
PC, +1300 ps/nm, 1530.100/1536.058 nm, 195170/195930 GHz | PC-N0314-P1300SP |
型號 10
描述 | Proximion 產品編號 |
PC, -200 ps/nm, 1533.230/ 1539.213 nm, 194770/195530 GHz | PC-N0321-N0200SP |
PC,+200 ps/nm, 1533.230/ 1539.213 nm, 194770/195530 GHz | PC-N0322-P0200SP |
PC, -400 ps/nm, 1533.230/ 1539.213 nm, 194770/195530 GHz | PC-N0323-N0400SP |
PC, +400 ps/nm, 1533.230/1539.213 nm, 194770/195530 GHz | PC-N0324-P0400SP |
PC, -600 ps/nm, 1533.230/ 1539.213 nm, 194770/195530 GHz | PC-N0325-N0600SP |
PC, +600 ps/nm, 1533.230/1539.213 nm, 194770/195530 GHz | PC-N0326-P0600SP |
PC, -800 ps/nm, 1533.230/ 1539.213 nm, 194770/195530 GHz | PC-N0327-N0800SP |
PC, +800 ps/nm, 1533.230/1539.213 nm, 194770/195530 GHz | PC-N0328-P0800SP |
PC, -1000 ps/nm, 1533.230/1539.213 nm, 194770/195530 GHz | PC-N0329-N1000SP |
PC, +1000 ps/nm, 1533.230/1539.213 nm, 194770/195530 GHz | PC-N0330-P1000SP |
PC, -1200 ps/nm, 1533.230/1539.213 nm, 194770/195530 GHz | PC-N0331-N1200SP |
PC, +1200 ps/nm, 1533.230/1539.213 nm, 194770/195530 GHz | PC-N0332-P1200SP |
PC, -1300 ps/nm, 1533.230/1539.213 nm, 194770/195530 GHz | PC-N0333-N1300SP |
PC, +1300 ps/nm, 1533.230/1539.213 nm, 194770/195530 GHz | PC-N0334-P1300SP |
型號 12
描述 | Proximion 產品編號 |
PC, -200 ps/nm, 1526.205/ 1532.133 nm, 195670/196430 GHz | PC-N0281-N0200SP |
PC,+200 ps/nm, 1526.205/ 1532.133 nm, 195670/196430 GHz | PC-N0282-P0200SP |
PC, -400 ps/nm, 1526.205/ 1532.133 nm, 195670/196430 GHz | PC-N0283-N0400SP |
PC, +400 ps/nm, 1526.205/1532.133 nm, 195670/196430 GHz | PC-N0284-P0400SP |
PC, -600 ps/nm, 1526.205/ 1532.133 nm, 195670/196430 GHz | PC-N0285-N0600SP |
PC, +600 ps/nm, 1526.205/1532.133 nm, 195670/196430 GHz | PC-N0286-P0600SP |
PC, -800 ps/nm, 1526.205/ 1532.133 nm, 195670/196430 GHz | PC-N0287-N0800SP |
PC, +800 ps/nm, 1526.205/1532.133 nm, 195670/196430 GHz | PC-N0288-P0800SP |
PC, -1000 ps/nm, 1526.205/1532.133 nm, 195670/196430 GHz | PC-N0289-N1000SP |
PC, +1000 ps/nm, 1526.205/1532.133 nm, 195670/196430 GHz | PC-N0290-P1000SP |
PC, -1200 ps/nm, 1526.205/1532.133 nm, 195670/196430 GHz | PC-N0291-N1200SP |
PC, +1200 ps/nm, 1526.205/1532.133 nm, 195670/196430 GHz | PC-N0292-P1200SP |
PC, -1300 ps/nm, 1526.205/1532.133 nm, 195670/196430 GHz | PC-N0293-N1300SP |
PC, +1300 ps/nm, 1526.205/1532.133 nm, 195670/196430 GHz | PC-N0294-P1300SP |
型號 13
描述 | Proximion 產品編號 |
PC, -200 ps/nm, 1526.205/ 1532.133 nm, 195670/196430 GHz | PC-N0281-N0200SP |
PC,+200 ps/nm, 1526.205/ 1532.133 nm, 195670/196430 GHz | PC-N0282-P0200SP |
PC, -400 ps/nm, 1526.205/ 1532.133 nm, 195670/196430 GHz | PC-N0283-N0400SP |
PC, +400 ps/nm, 1526.205/1532.133 nm, 195670/196430 GHz | PC-N0284-P0400SP |
PC, -600 ps/nm, 1526.205/ 1532.133 nm, 195670/196430 GHz | PC-N0285-N0600SP |
PC, +600 ps/nm, 1526.205/1532.133 nm, 195670/196430 GHz | PC-N0286-P0600SP |
PC, -800 ps/nm, 1526.205/ 1532.133 nm, 195670/196430 GHz | PC-N0287-N0800SP |
PC, +800 ps/nm, 1526.205/1532.133 nm, 195670/196430 GHz | PC-N0288-P0800SP |
PC, -1000 ps/nm, 1526.205/1532.133 nm, 195670/196430 GHz | PC-N0289-N1000SP |
PC, +1000 ps/nm, 1526.205/1532.133 nm, 195670/196430 GHz | PC-N0290-P1000SP |
PC, -1200 ps/nm, 1526.205/1532.133 nm, 195670/196430 GHz | PC-N0291-N1200SP |
PC, +1200 ps/nm, 1526.205/1532.133 nm, 195670/196430 GHz | PC-N0292-P1200SP |
PC, -1300 ps/nm, 1526.205/1532.133 nm, 195670/196430 GHz | PC-N0293-N1300SP |
PC, +1300 ps/nm, 1526.205/1532.133 nm, 195670/196430 GHz | PC-N0294-P1300SP |
表1 產品編號
3 資格認證
本文檔中描述的產品符合GR-1209/1221 CO標準。
請參閱文檔111409-B-REL-DOC-DCM_PC Qualification_Report-1.pdf。
DCM-PC產品符合歐洲議會關于限制在電子電氣設備中使用某些有害物質的指令2002/95/EC（RoHS指令）。
指令允許的豁免是可以接受的；然而，這些豁免應在RoHS合規證書中明確列出。
4 規格
4.1 環境與機械規格
參數 | 規格 | 單位 | 備注 |
工作溫度范圍 | -5 至 +70 | °C | |
存儲溫度 | -40 至 +85 | °C | |
Min. 彎曲半徑 FBG，連續使用 | 50 | mm | |
連接器類型 | SC/UPC | 超精密拋光等級 | |
光纖跳線長度 | ~1.5 | m | |
FBG長度 | < 1.2 | m | 不同單元之間的長度可能有所不同，但Max. 長度為1.2米 |
表2 環境與機械規格

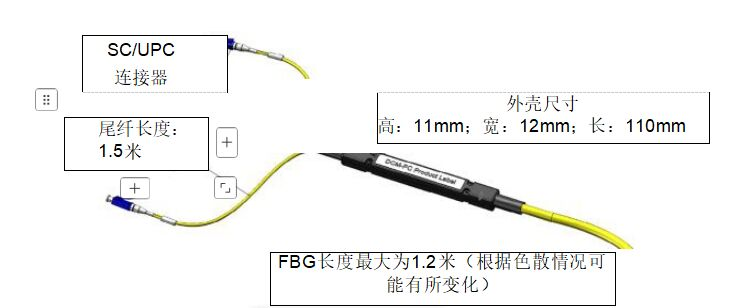

圖2 DCM-PC產品的機械輪廓圖
4.3 一般光學規格
以下所有規格均為EOL（生命周期終結），在操作溫度范圍內以及整個操作波長范圍內（具體型號請見下文），包括一個連接器-連接器接口，除非另有說明。
表3 所有型號的頻率/波長表
4.4 型號1 (工作波長范圍：1536.373 – 1542.380)
參數 | 典型值 | 規格 | 單位 | 備注 |
工作波長范圍 | 1530.100–1536.058 195170 - 195930 | nm GHz | 備注：8個ITU通道，在每側擴展至少30 GHz | |
色散 | -200 | ps/nm | PC-N0301-N0200SP | |
+200 | ps/nm | PC-N0302-P0200SP | ||
-400 | ps/nm | PC-N0303-N0400SP | ||
+400 | ps/nm | PC-N0304-P0400SP | ||
-600 | ps/nm | PC-N0305-N0600SP | ||
+600 | ps/nm | PC-N0306-P0600SP | ||
-800 | ps/nm | PC-N0307-N0800SP | ||
+800 | ps/nm | PC-N0308-P0800SP | ||
-1000 | ps/nm | PC-N0309-N1000SP | ||
+1000 | ps/nm | PC-N0310-P1000SP | ||
-1200 | ps/nm | PC-N0311-N1200SP | ||
+1200 | ps/nm | PC-N0312-P1200SP | ||
-1300 | ps/nm | PC-N0313-N1300SP | ||
+1300 | ps/nm | PC-N0314-P1300SP | ||
Max. 插入損耗 | 2 | < 2.9 | dB | 所有類型 |
插入損耗局部變化 | < 0.4 | dB | 所有類型 | |
偏振依賴損耗 | 0.2 | < 0.3 | dB | 所有類型 |
相位波動 | 0.1 | < 0.3 | rad | 所有類型 |
偏振模色散 | 0.5 | < 1 | ps | 所有類型 |
相位波動頻率差 | 15 | GHz | 所有類型 | |
插入損耗頻率差 | 15 | GHz | 所有類型 | |
色散容差 | ±2.5 | % | 所有類型 | |
回波損耗 | < 40 | dB | 所有類型 |
表14 光學規格 Model 11 (OWR 1530.100 – 1536.058)
4.15 型號 12 (OWR: 1526.205 – 1532.133)
參數 | 典型值 | 規格 | 單位 | 備注 |
工作波長范圍 | 1526.205 – 1532.133 195670 - 196430 |
nm GHz | 注：8個ITU通道， 每一側擴展至少30 GHz | |
色散，CD | -200 | ps/nm | PC-N0281-N0200SP | |
+200 | ps/nm | PC-N0282-P0200SP | ||
-400 | ps/nm | PC-N0283-N0400SP | ||
+400 | ps/nm | PC-N0284-P0400SP | ||
-600 | ps/nm | PC-N0285-N0600SP | ||
+600 | ps/nm | PC-N0286-P0600SP | ||
-800 | ps/nm | PC-N0287-N0800SP | ||
+800 | ps/nm | PC-N0288-P0800SP | ||
-1000 | ps/nm | PC-N0289-N1000SP | ||
+1000 | ps/nm | PC-N0290-P1000SP | ||
-1200 | ps/nm | PC-N0291-N1200SP | ||
+1200 | ps/nm | PC-N0292-P1200SP | ||
-1300 | ps/nm | PC-N0293-N1300SP | ||
+1300 | ps/nm | PC-N0294-P1300SP | ||
Max. 插入損耗 | 2 | < 2.9 | dB | 所有類型 |
插入損耗局部變化 | < 0.4 | dB | 所有類型 | |
偏振依賴損耗 | 0.2 | < 0.3 | dB | 所有類型 |
相位波動 | 0.1 | < 0.3 | rad | 所有類型 |
偏振模色散 | 0.5 | < 1 | ps | 所有類型 |
相位波動頻率差 | 15 | GHz | 所有類型 | |
插入損耗頻率差 | 15 | GHz | 所有類型 | |
色散容差 | ±2.5 | % | 所有類型 | |
回波損耗 | < 40 | dB | 所有類型 |
表15 光學規格 模型12 (OWR 1526.205 – 1532.133)
5 產品標簽和包裝
5.1 標簽
DCM-PC 將按照圖 3 中所示的示例進行標記（請注意，示例圖中的值為虛擬值）。標簽上包含了部件號、序列號、色散值、工作波長范圍以及帶有序列號和部件號的二維條形碼。
圖 3 DCM-PC 標簽示例
5.2 包裝

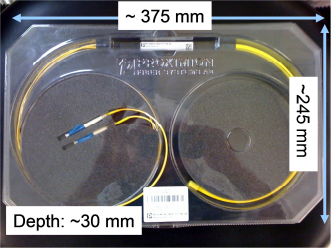

DCM-PC 產品單獨包裝在一個泡罩包裝中。請參見圖 4。多個單獨包裝的 DCM-PC 產品可以一起通過保護性外包裝箱（紙箱樣式）進行運輸，以便高效運輸。泡罩包裝的總重量（包括 DCM-PC）約為 0.3 千克。
圖4 DCM-PC包裝
6 測試報告

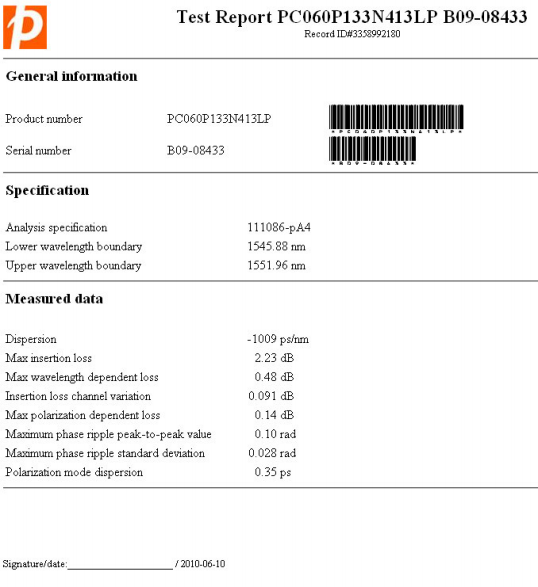

DCM-PC將在發貨前在最終測試站進行測量。在運輸容器中，每個單獨的產品將附帶一份測試報告。圖5展示了一個生成的測試報告示例（請注意，這描述的是不同的部件號）。
Figure 5 最終測試報告示例
7 光學參數定義
Abb. | 定義 | 單位 | |
1-1 | ΔνIL | 插入損耗參數分析或平均的頻率窗口 | GHz |
1-2 | Δνφ | 局部相位和群延遲參數分析或平均的頻率窗口。 | GHz |
1-3 | IL | 插入損耗作為波長的函數是經過ΔνIL頻率窗口平均的極化平均損耗。 | dB |
1-4 | ILmax | 在工作波長范圍內的Max. 插入損耗為 ILmax = max(IL(λ)) | dB |
1-5 | IL local var | 局部插入損耗變化，定義為在插入損耗窗口 ΔνIL 范圍內，Max. 插入損耗與Min. 插入損耗 IL(λ) 之間的差值。 |
dB |
1-6 |
GD | 群延遲定義為光學相位對角頻率的導數。群延遲可以作為頻率或波長的函數表示。 |
ps |
1-7 |
GDfit | 在整個工作波長范圍內對群延遲（GD）進行二次Min. 二乘多項式擬合。 |
ps |
1-8 |
GDR | 群延遲波動（GDR）定義為群延遲（GD）與z佳擬合近似群延遲（GDfit）之間的差值。 |
ps |
1-9 |
φdisturbance | 群延遲波動對角頻率的積分 |
rad |
1-10 |
φRipple1 | 圍繞頻率 www 的一階局部相位波動定義為： φRipple 1 (w) = φdisturbane (w)- (a0 + a1w) 其中 a0 和 a1 是在角頻率區間 [ w-π Δνφ , w+π Δνφ ] 內計算得到的擬合參數。 |
rad |
1-11 |
φpp1 | 一階相位波動的峰峰差是指在頻率窗口 Δνφ 內，Max. 和Min. 的φRipple1之間的差值
該窗口在整個工作波長范圍內滑動。 |
rad |
1-12 |
CD | 色散，群延遲對波長的導數 |
ps/nm |
1-13 |
PMD | 偏振模色散定義為在操作波長范圍內的平均DGD值。相位數據已經通過一個寬度為100 pm的移動頻率窗口進行平均，以去除來自普通偏振無關群延遲波動的貢獻。
|
ps |
營業執照
